In the world of precision machining, the quality of a finished part is not only measured by its dimensional accuracy but also by its surface finish. One common challenge in CNC machining is the presence of tool marks, which can affect the aesthetics and functionality of CNC machined parts. At HY Metals, we understand that some clients require parts with smooth, flawless surfaces, free from visible tool marks. That’s why we employ advanced techniques and processes to minimize or eliminate these marks, ensuring that every CNC machined part meets the highest standards of quality and appearance.
Understanding CNC Machining Tool Marks

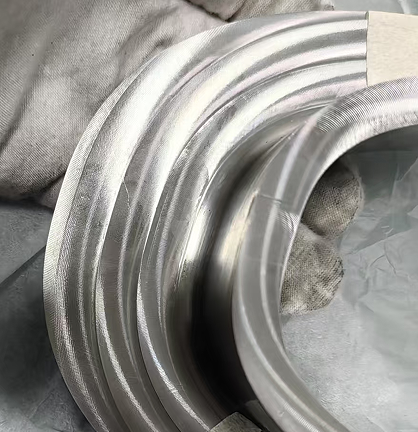

Tool marks, also known as machining marks, are the visible lines or patterns left on the surface of a workpiece after CNC milling, turning, or other machining processes. These marks are caused by the cutting tool’s movement and can vary in depth and visibility depending on factors such as tool geometry, feed rate, and material properties. While some tool marks are unavoidable, they can be minimized or removed through careful planning and post-processing techniques.
Minimizing Tool Marks During CNC Machining
1. Optimizing Cutting Parameters: One of the most effective ways to reduce tool marks is by fine-tuning the machining parameters. At HY Metals, our experienced engineers adjust the spindle speed, feed rate, and depth of cut to achieve a smoother surface finish. Slower feed rates and higher spindle speeds, for example, can significantly reduce the visibility of tool marks.
2. Using High-Quality Tools: The choice of cutting tools plays a critical role in surface finish. We use sharp, high-precision tools with the appropriate geometry to ensure clean cuts and minimize marks. Additionally, tools with specialized coatings can reduce friction and improve surface quality.
3. Implementing Advanced Machining Strategies: Techniques such as high-speed machining (HSM) and climb milling can help achieve smoother finishes. These methods reduce vibration and tool deflection, resulting in fewer visible marks on the workpiece.
Post-Processing Techniques for a Flawless Finish
While optimizing the machining process can reduce tool marks, some applications require completely smooth surfaces. At HY Metals, we offer a range of post-processing solutions to achieve the desired finish:

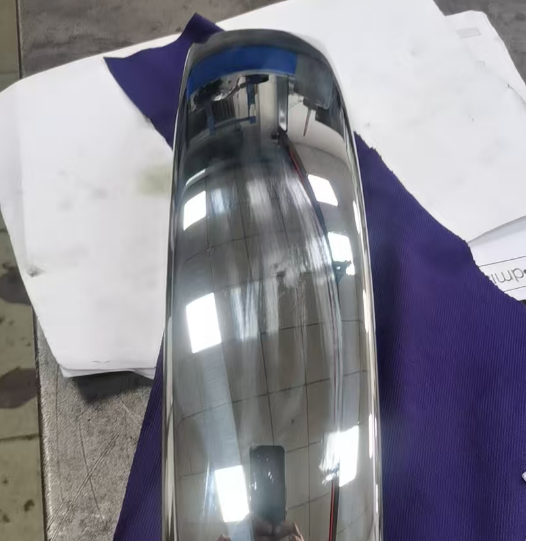

1. Manual Polishing and Sanding: For small batches or intricate parts, manual polishing with sandpaper or abrasive pads can effectively remove tool marks. This method allows for precise control, ensuring that critical dimensions are not compromised.
2. Mechanical Polishing: For larger volumes, we use mechanical polishing tools such as buffing wheels or abrasive belts. These tools provide consistent results and are ideal for achieving a uniform finish on CNC machined steel parts.
3. Abrasive Blasting (Sandblasting): Abrasive blasting is an excellent way to create a matte or satin finish while masking minor tool marks. This process involves propelling fine abrasive particles at the surface, which not only smooths the surface but also enhances its durability.
4. Electropolishing: For stainless steel and other conductive materials, electropolishing is a highly effective method. This electrochemical process removes a thin layer of material, resulting in a smooth, burr-free surface with improved corrosion resistance.
5. Surface Coating: In some cases, applying a surface coating such as powder coating or anodizing can hide tool marks while adding additional functional benefits like wear resistance or improved aesthetics.
Why Choose HY Metals for Your CNC Machining Needs?
At HY Metals, we specialize in custom manufacturing and precision machining, delivering CNC machined parts that meet the most demanding requirements. Whether you need CNC milling, turning, or EDM services, our team is equipped to handle projects of any complexity.
Our commitment to quality extends beyond machining to include comprehensive post-processing solutions. By combining advanced techniques with meticulous attention to detail, we ensure that every part we produce is not only functional but also visually appealing.
If you’re looking for a reliable partner to deliver high precision components with flawless finishes, look no further than HY Metals. Contact us today to discuss your project requirements and discover how we can help you achieve perfection in every detail.
